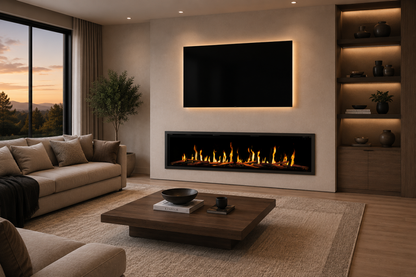

Modern Flames Orion V2 Slim Series

$4,479.00 USD

Sale Sold out

Shipping calculated at checkout.

The Modern Flames Orion V2 Slim Series is a shallow-profile virtual electric fireplace engineered for standard 2x6 walls. At 6-5/16 inches deep, it brings the same next-generation LCD flame display, 24-flame library, built-in audio, and Modern Flames+ app as the rest of the Orion V2 line to installations where framing depth is limited.

It can finish flush as a built-in clean-face fireplace, slide in after drywall as a self-trimming unit, or hang on the wall, and it runs on standard 120V power with a plug included. Modern Flames rates the Orion V2 Slim for indoor and covered outdoor use.

At a Glance

Best for	Living rooms, bedrooms, offices, and remodels framed with 2x6 studs
Installation	Built-in clean face, self-trimming, or wall mounted
Available sizes	52", 60", 76", and 100"
Depth	6-5/16" unit; 6-1/2" rough-opening depth for built-in
Flame display	Next-generation LCD with adaptive brightness and 24 built-in flame options
Heat output	5,000 BTU (up to approx. 400 sq ft)
Power	120V; plug included, hardwire ready
Audio	Built-in speakers, Bluetooth streaming, and three crackling soundscapes
Controls	Remote, Modern Flames+ app, and compatible smart-home systems
Warranty	5-year warranty

Good Fit If

Your wall is framed with 2x6 studs and you want a true built-in look without bumping out the wall.
You want a front-facing linear fireplace with the realism of Orion V2 flames.
You want the option to simply plug in rather than hardwire.
You are adding a fireplace to a bedroom, office, or remodel where wall depth is limited.
You want a unit that can also be wall mounted.

Not Ideal If

You want a corner or three-sided installation. See the Orion V2 Multi.
You want internally lit logs and a deeper firebox. Lit logs are offered on the Orion V2 Multi and Traditional.
You need more than 5,000 BTU of supplemental heat.
You want to hang it on an outdoor wall or place it on an uncovered deck. Outdoor approval is for built-in installs under a solid patio cover.
You need the fireplace to act as the primary heat source for your home.

Key Features

Built for 2x6 walls: A 6-5/16-inch-deep chassis lets the fireplace sit flush in a standard 6-inch wall.
Next-generation LCD flame display: Sharper contrast, deeper blacks, and richer color, with adaptive brightness that balances the flames to the room's light.
24 flame options out of the box: Three flagship multi-dimensional linear flame styles plus a fourth slot that can be swapped for additional flame styles, colors, or themes from the app library.
Over-the-air updates: New flames and themes arrive through the Modern Flames+ app, and up to six experiences can be stored on the fireplace at once.
Split-wood log set: A log set made from real split wood sits over an active glowing ember bed, highlighted by brighter downlighting.
Premium audio: Custom speakers, Bluetooth streaming, and three crackling soundscapes: Classic Crackling, Starry Night, and Stormy Night.
PTC ceramic heater: Quiet, consistent 5,000 BTU supplemental heat for spaces up to approximately 400 square feet.
Smart control: Adjust flame, ember-bed, and downlight colors from the remote or the iOS/Android app, and connect to compatible smart-home systems.

Installation and Fit

The Orion V2 Slim offers three ways to finish. As a self-trimming unit, it slides into a finished opening after the drywall is up and uses its trim to cover the edge. For a flush clean-face look, the trim is replaced with the included drywall stops so the wall finishes right to the glass. It can also be wall mounted.

Rough-opening height is 19-1/8" for every size.
Rough-opening depth is 6-1/2" for a built-in clean face; self-trimming openings need a 6" minimum.
Rough-opening widths run from 50-3/4" for the 52" model to 99-1/2" for the 100" model.
Runs on 120V with the included plug, or can be hardwired.

Outdoor installation

Outdoors, the Orion V2 Slim is approved only as a built-in, and only where a patio roof shelters it from rain and direct sun. Size the cover from the fireplace itself: measure from the bottom of the unit up to the patio ceiling, and make sure the roof reaches out in front by at least half that distance, with the same minimum protection on each side. If the ceiling is 8 feet above the bottom of the fireplace, for example, plan on at least 4 feet of cover in front and at both sides. The base of the fireplace must also sit at least 2 inches above the patio floor. Wall-mounted outdoor installs, open decks, and slatted pergolas are not approved.

Before ordering, confirm the exact opening for your size and finish style, your power plan, and your wall materials in the model-specific manual.

What’s Included

Modern Flames Orion V2 Slim electric fireplace
Split-wood log set and ember bed
Self-trimming trim and drywall stops for clean-face installation
Remote control
Built-in WiFi for the Modern Flames+ app
Manual and specification documentation

Product Specifications

Brand	Modern Flames
Series	Orion V2 Slim
Product category	Slim virtual (LCD) linear electric fireplace
Installation options	Built-in clean face, self-trimming, wall mounted
Unit height	19-5/8"
Unit depth	6-5/16"
Heat output	5,000 BTU; up to approx. 400 sq ft
Power	120V; plug included, hardwire ready
Flame options	24 included, expandable through the Modern Flames+ app
Audio	Custom speakers, Bluetooth, three soundscapes
Location rating	Indoor; outdoor as a built-in under a qualifying patio cover
Warranty	5 years

Size	Model	Unit width	Rough-opening width
52"	OR52-SLIM-V2	52-3/8"	50-3/4"
60"	OR60-SLIM-V2	60"	58-1/2"
76"	OR76-SLIM-V2	76-5/8"	75-1/8"
100"	OR100-SLIM-V2	101"	99-1/2"

Common Questions

Will the Orion V2 Slim fit in a 2x6 wall?

Yes. It is engineered for 2x6 framing, with a 6-5/16-inch unit depth and a 6-1/2-inch rough-opening depth for a built-in clean-face installation.

What is the difference between built-in clean face and self-trimming?

Self-trimming units slide into a finished opening and use their trim to cover the edge. For a clean-face built-in, the trim is swapped for the included drywall stops so the wall is finished flush to the glass.

Can the Orion V2 Slim plug into a standard outlet?

Yes. It runs on 120V and includes a plug, and it can also be hardwired for a cleaner installation.

How is the Orion V2 Slim different from the original Orion Slim?

V2 upgrades the LCD panel and adds adaptive brightness, expands to 24 flame options with new styles delivered through the Modern Flames+ app, adds built-in speakers with Bluetooth, uses a new split-wood log set, adds a built-in clean-face installation option, and is approved for covered outdoor built-in installations.

Can the flames run without heat?

Yes. The flame display, lighting, and audio can all be used with the heater off, so the fireplace can be enjoyed year-round.

Can the Orion V2 Slim be installed outdoors?

Yes, as a built-in under a solid patio roof that keeps it out of rain and direct sun. The cover in front and at each side must extend at least half the distance from the bottom of the fireplace to the patio ceiling, and the unit must sit at least 2 inches above the floor. Wall-mounted outdoor installs, open decks, and slatted pergolas are not approved.

Guides and Manuals

Specifications and installation guidance on this page are based on current Modern Flames manuals, specification sheets, and product documentation linked below. Confirm final framing and electrical requirements in the model-specific manual.
