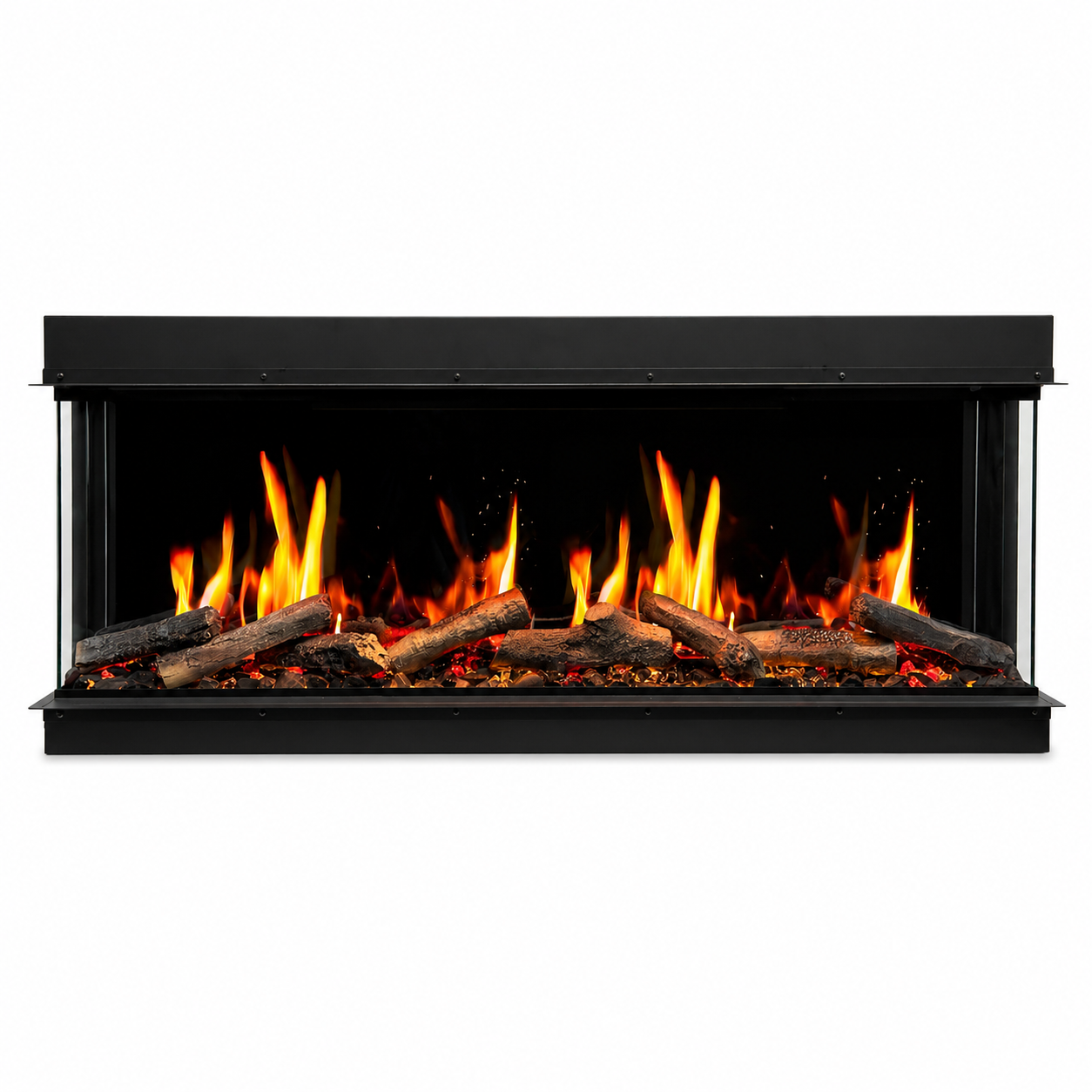

Litedeer WarmCastle 3-Sided Smart Electric Fireplace
The Litedeer WarmCastle is a built-in smart electric fireplace designed for single-sided, corner, or three-sided viewing. The current family includes 50-, 60-, and 72-inch models with aquarium mode and app control.
At a Glance
| Fireplace type | Three-Sided Electric Fireplace |
| Installation | Built-in single-sided, corner, or three-sided presentation |
| Available sizes | 50-inch, 60-inch, 72-inch |
| Controls | Remote and smart app control |
Good Fit If
- You want a fireplace visible from more than one side.
- You are designing a feature wall, peninsula, or corner installation.
- You want smart app and remote control.
Not Ideal If
- You need a traditional insert for an existing masonry opening.
- You want a water-vapor flame system.
Key Features
- One-, two-, or three-sided installation flexibility
- Smart app and remote control

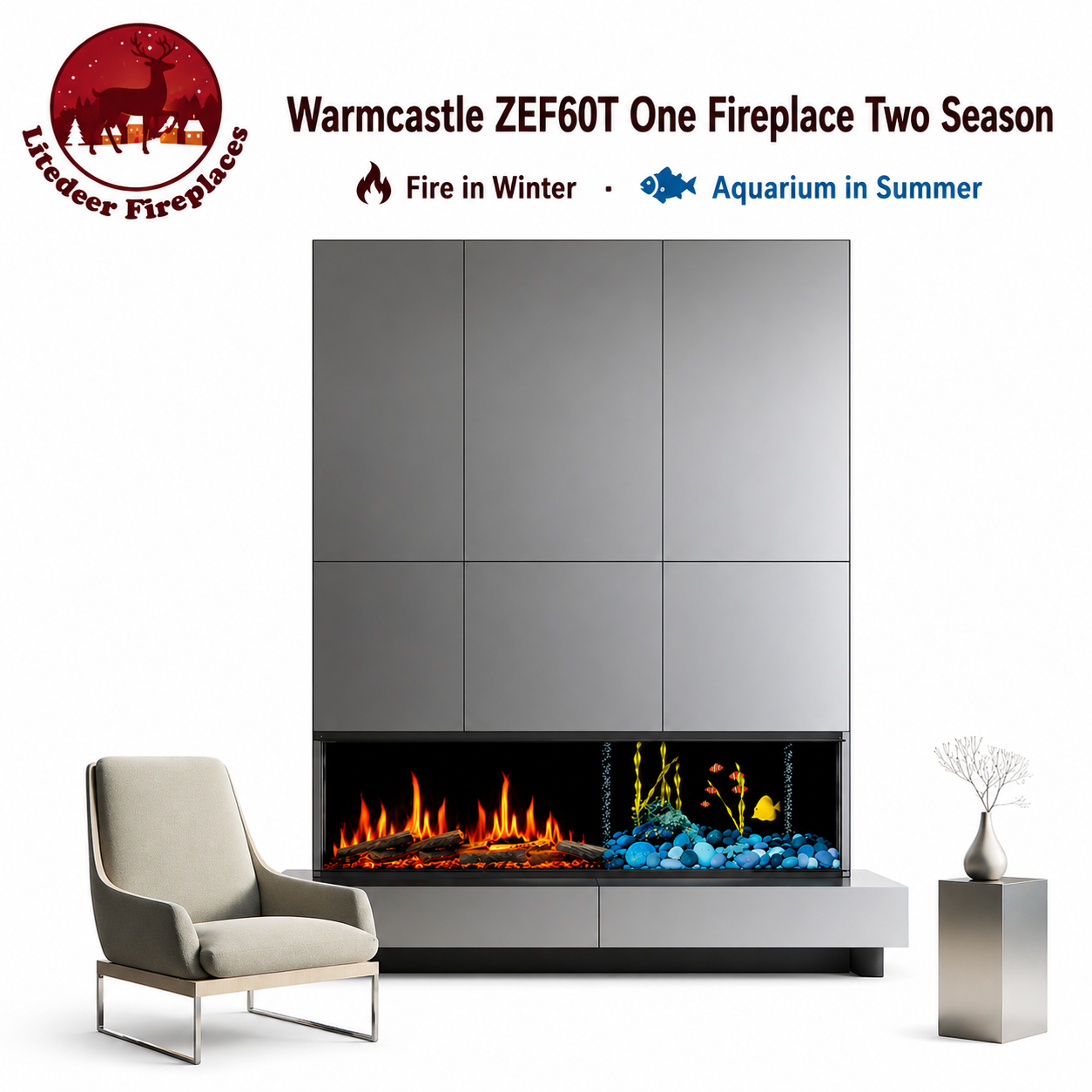

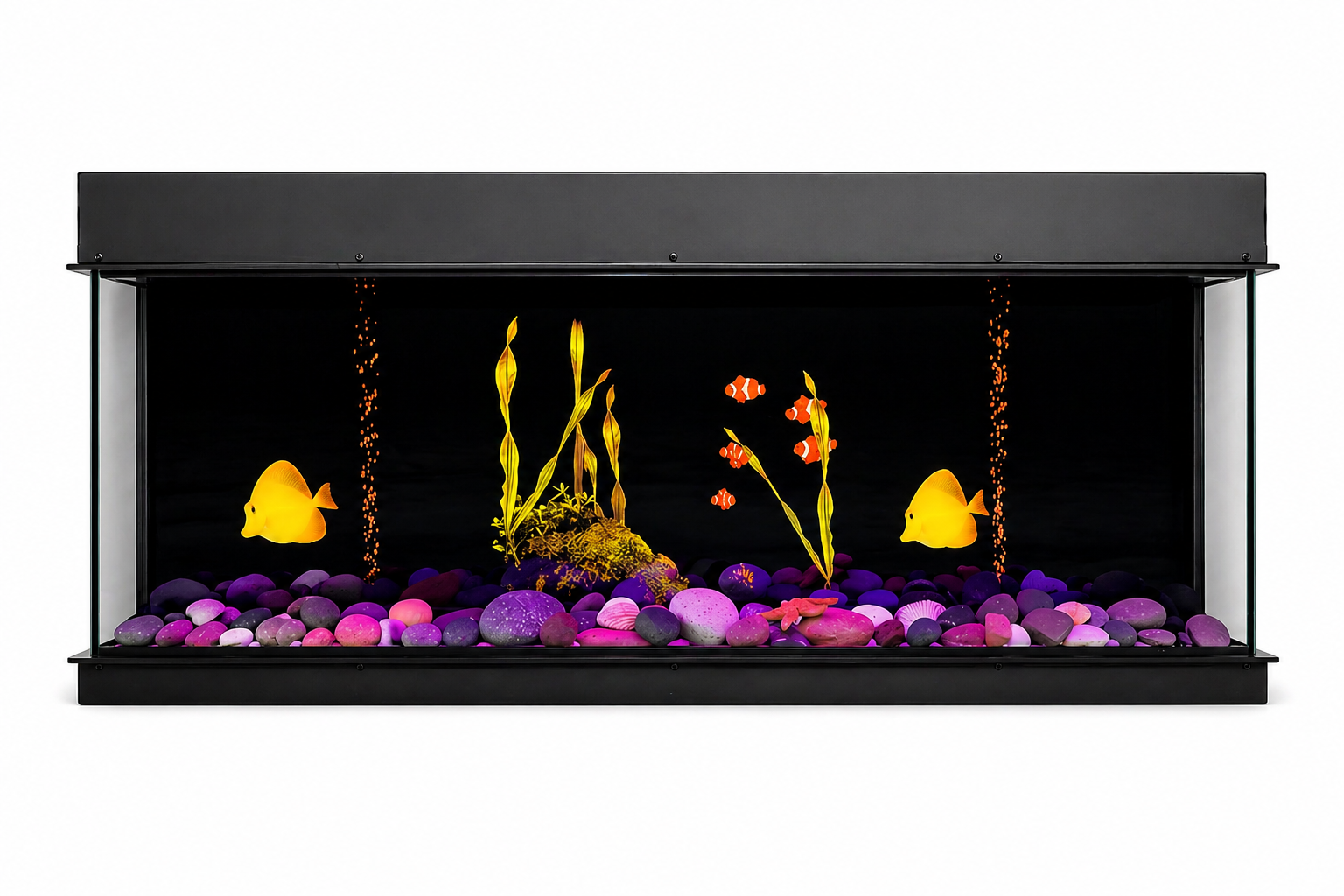

- Aquarium display mode
- Three current sizes on one family page
Installation and Fit
Plan the enclosure around the glass sides you intend to expose. Overall dimensions differ from the enclosure opening; use the manual’s drawing for the selected single-sided, corner or three-sided arrangement. All three models use the electrical supply listed below. Provide support, service access and clearances as shown in the manufacturer instructions.
What’s Included
Fireplace, remote control, decorative media supplied for this series, and manufacturer documentation when available. Confirm framing, electrical, ventilation, and clearance requirements before installation.
Product Specifications
| Brand | Litedeer |
| Series | WarmCastle 3-Sided |
| Product category | Electric Fireplace |

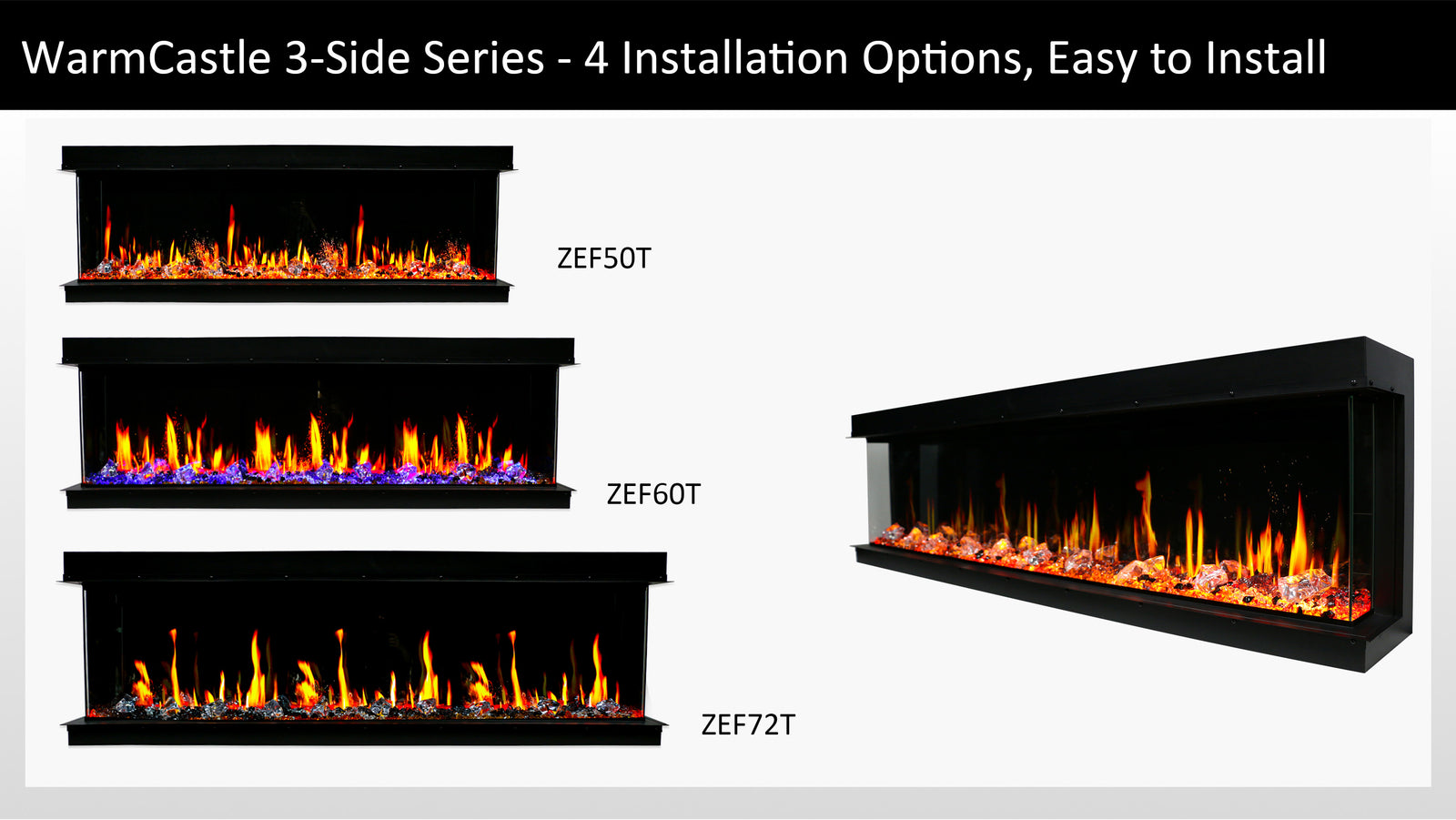

| Available models | 50-inch, 60-inch, 72-inch |

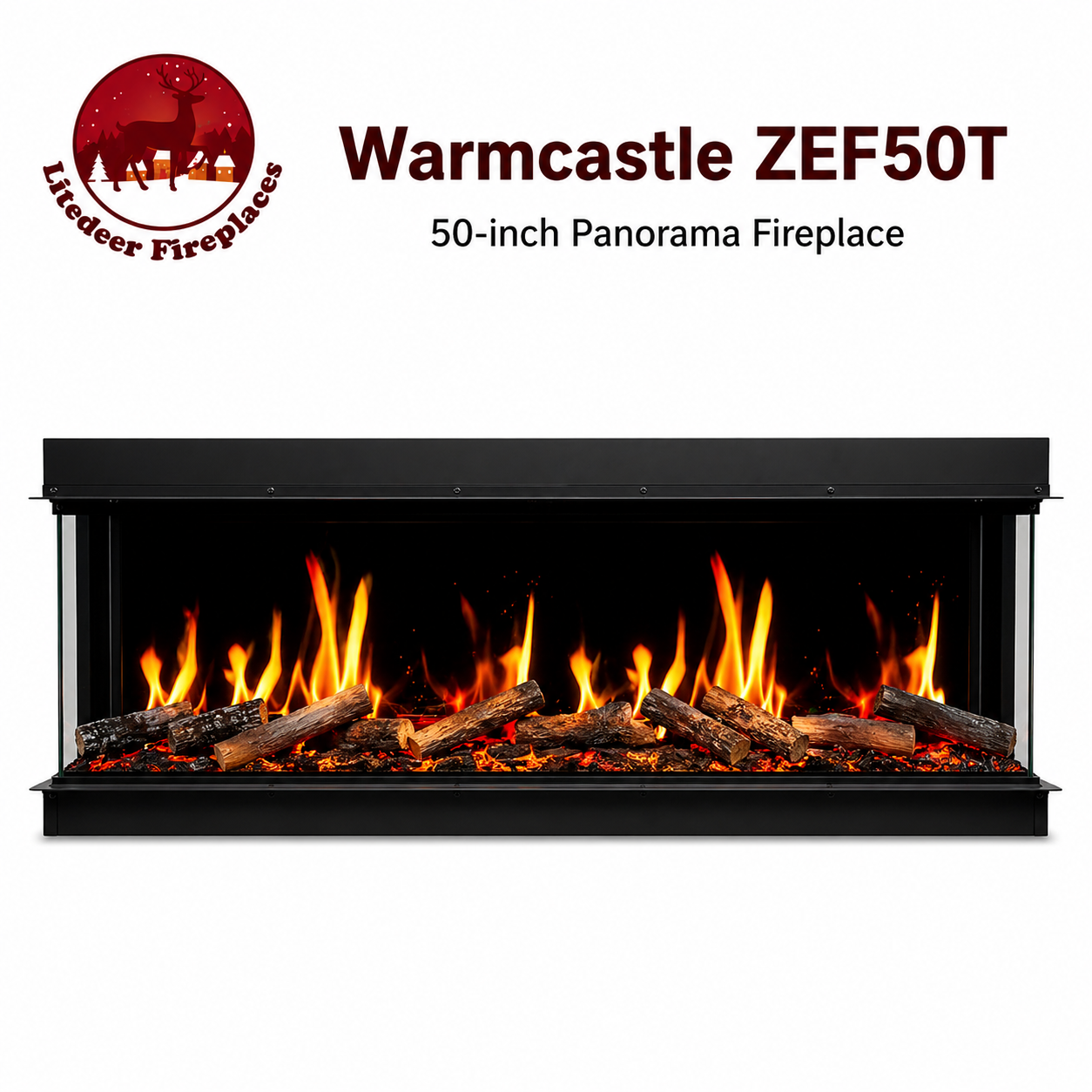

| 50-inch — ZEF50T | 50 × 20 1/2 × 9 3/8 in. overall (W × H × D), per manufacturer dimensional drawing; not a framing opening. |
| 60-inch — ZEF60T | 60 × 20 1/2 × 9 3/8 in. overall (W × H × D), per manufacturer dimensional drawing; not a framing opening. |
| 72-inch — ZEF72T | 72 × 20 1/2 × 9 3/8 in. overall (W × H × D), per manufacturer dimensional drawing; not a framing opening. |
| Voltage and heater settings | 120V AC; 750W low / 1,500W high |
| Calculated heater current | Approximately 6.25A at 750W / 12.5A at 1,500W (watts ÷ 120V); follow the supplied rating label and installation instructions. |
| Circuit and connection | Series manual specifies a 15A circuit; grounded plug-in connection or hardwiring by a qualified installer. |
Common Questions
Can the flame effect be used independently?
Yes. The flame and aquarium display modes can be enjoyed independently of heat.
How should I choose a size?
Use the listed overall dimensions for planning, then verify the current manufacturer installation instructions before framing or ordering finish materials.
Does it include smart control?
Yes. This series supports smart app control in addition to the included remote.
What electrical supply does it need?
The series manual specifies a 120V AC, 15A circuit. It provides grounded plug-in and qualified hardwire installation options. Heat settings are 750W and 1,500W. Follow the rating label and instructions for the exact unit supplied.
How much does it cost to run?
At an illustrative electricity rate of $0.20/kWh, continuous heating costs about $0.15 per hour at 750W or $0.30 per hour at 1,500W. Multiply power in kW by hours used and your electricity rate. Actual cost varies with heat settings and runtime; flame-only consumption is lower and is not quantified here.
Guides and Manuals
Specifications and installation guidance on this page are based on current manufacturer manuals, specification sheets, and product documentation linked below. Confirm final framing and electrical requirements in the model-specific manual.
