REACHING NEW HEIGHTS
The BI-60-DEEP-XT features an Extra Tall viewing area that is 18” in height! That is 6” taller than our other Panorama models. It has a deep media tray and comes standard with your choice of an incredible log set, ICE media, pebbles, stones, black glass, and vermiculite embers allowing consumers to completely customize the look of their fireplace
Built with Amantii’s FIRE & ICE® Flame presentation made of three-color LED light strips allowing for multicolor flame options. With just a click of the included remote control, choose from blue, rose, violet, yellow, or orange colored flames.
Panorama fireplaces are rated for Indoor or Outdoor use.
Full Frame Viewing Area
The Panorama Series give you multiple lengths and depth options as well as giving you the ability to install your fireplace with your choice of finishing material built right to the glass for a “clean face” design or using the provided black metal surround. Your choice – your design!
A Kaleidoscope of colors
Featuring the vibrant Fire & Ice flame set, with just a click of your remote you can easily change the flame color from blue to purple to violet to orange or yellow.
How is the heat emitted from a Panorama?
The heater and fan are located in the top of the unit and the glass is uniquely angled backward to allow heat to cascade down over the front of the fireplace.
Note: The BI-60-DEEP-XT fireplaces models feature the newest Dual Flame blue/multi-color flame presentation.
Features
- All models are rated for either indoor or outdoor use
- Incredible 17 3/4″ high viewing area
- Black glass side panels
- Mirrored media tray
- FIRE & ICE ® Flame presentation – three light strips allow for yellow, orange, blue, violet, and rose-colored flames
- Ambient Canopy lighting in 13 colors
- DEEP models have 2 flame sets
- 2 Stage heater
- Hardwire ready
- Thermostat hardwire ready
- Flame can operate without heat
- Single remote control for flame, ambient canopy lighting & heater included
- Full frame viewing – Fireplace allows for your choice of finishing material to come right to the glass
- Optional black steel surround comes in the box – it is up to you if you want to use it or not.
- Can produce up to 4800 BTU of heat, enough to heat up to 500 sq feet
Specs
| BI-60-DEEP-XT | |
| Volts | 120V AC 60Hz |
| Watts | 1500W Max |
| No Heater | 25W |
| Motor Heater | 19W |
| Appliance Width | 58 5/8” or 148.5 cm |
| Appliance Height | 29 1/2” or 75 cm |
| Appliance Depth | 12 5/8” or 32.2 cm |
| Shipping Size | 31 1/4 x 66 1/4 x 15 1/4″ |
| Shipping Weight | 164.25 lbs |
| Plug Location | Left side |
| Cord Length | 70 7/8” or 180 cm |
| Rough Wall Opening Size | 60”× 30“ or 152.4 cm× 76.2 cm |
| BTU | 4800 |
Installation
OUTDOOR INSTALLATION INSTRUCTIONS
REPLACEMENT GLASS MEASUREMENTS
Included Accessories

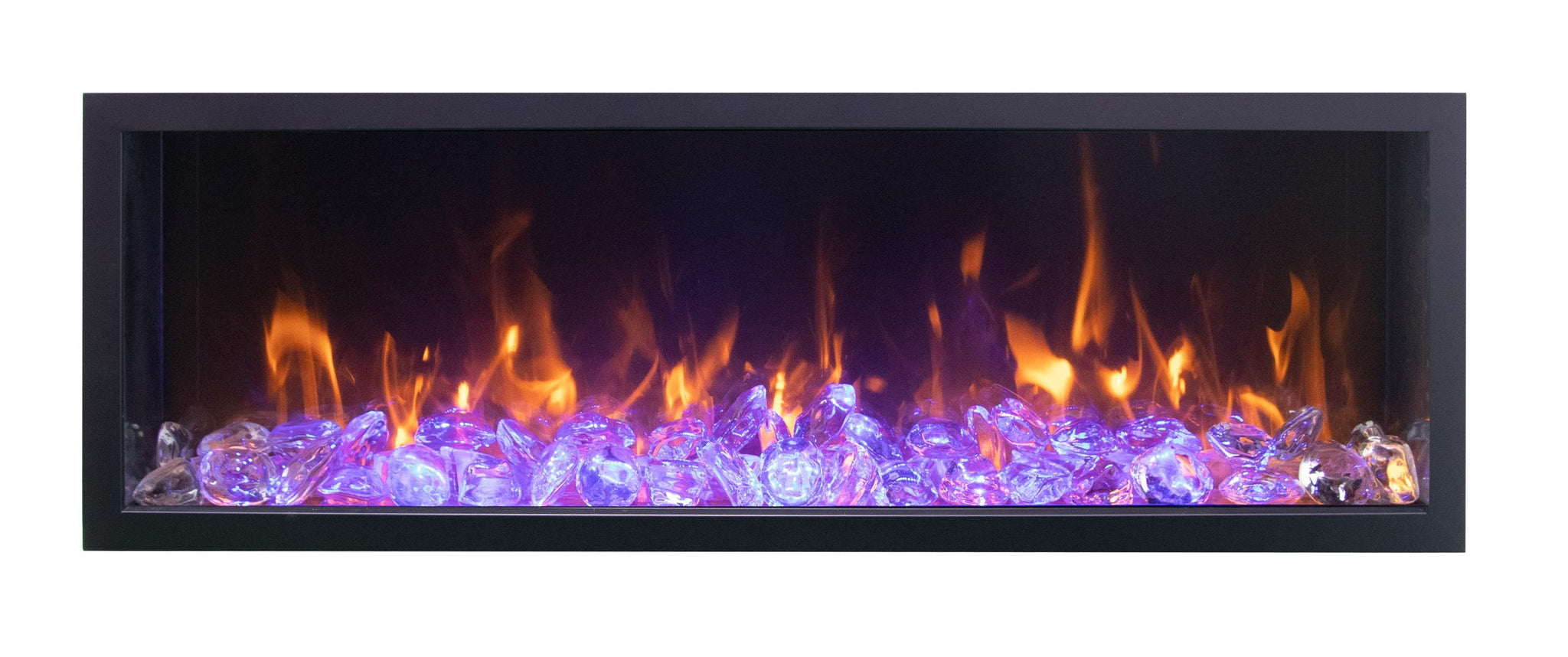

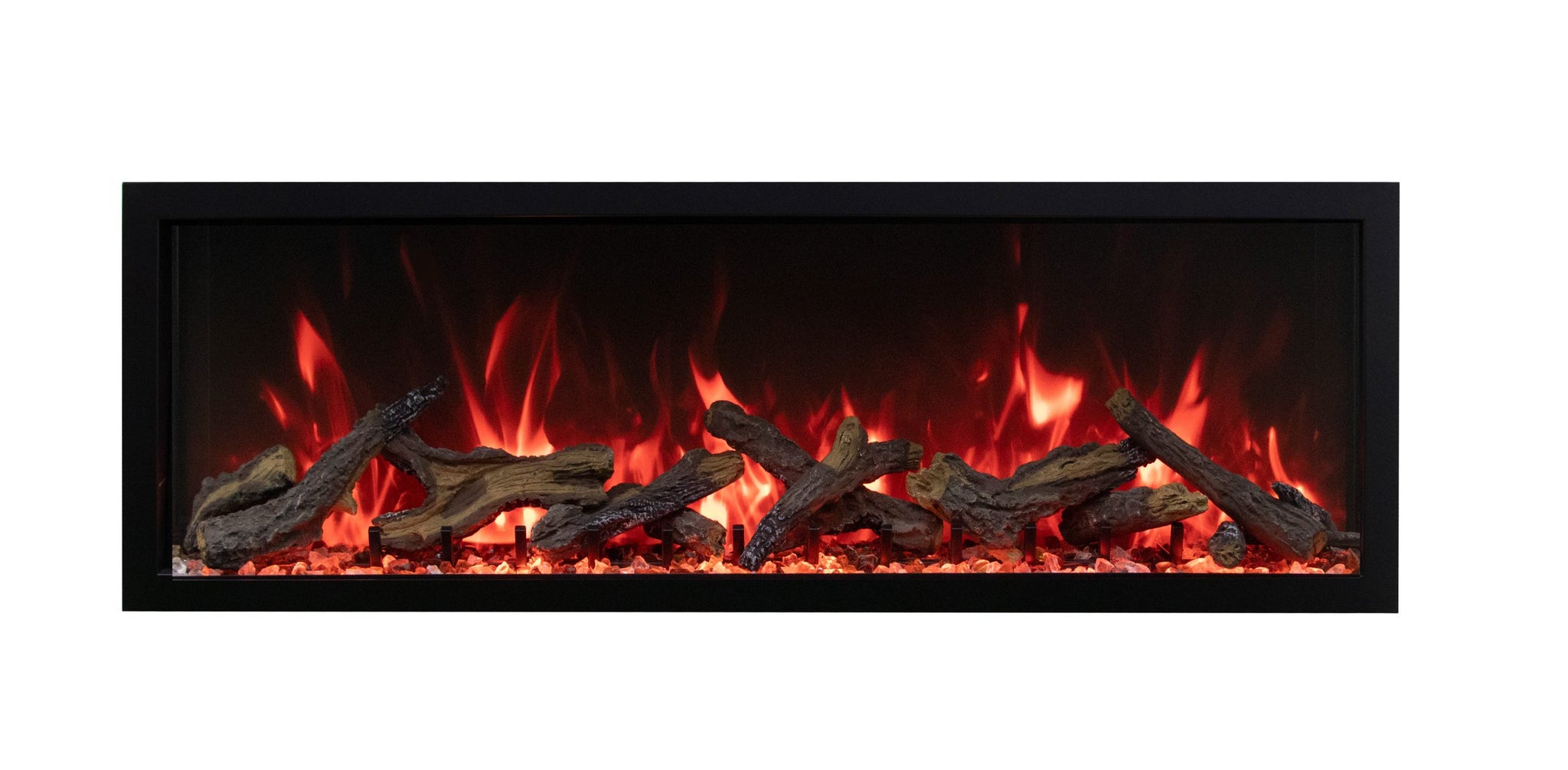

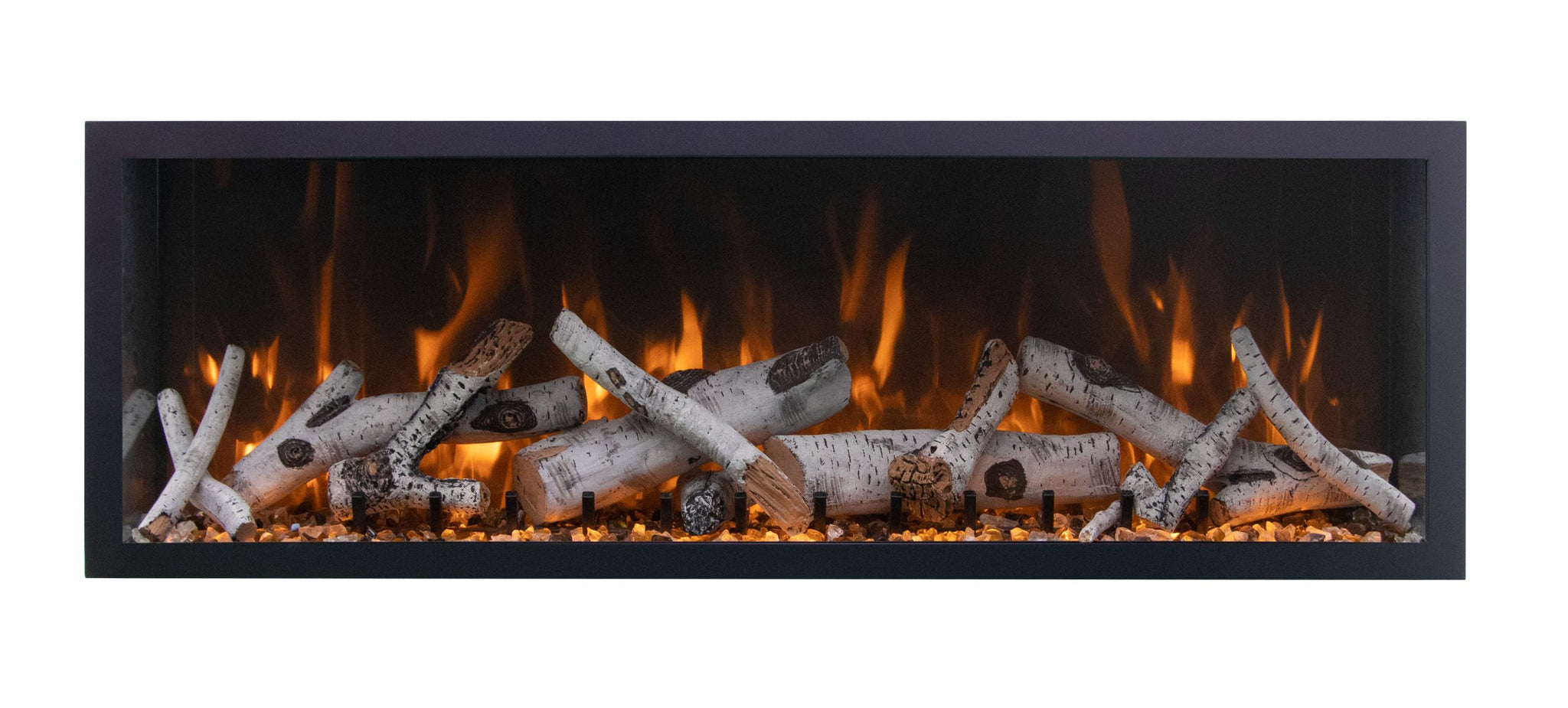

The BI-60-DEEP-XT comes with your choice of 15 piece log set or ICE media kit including large glass chunks, clear and blue diamond media.
