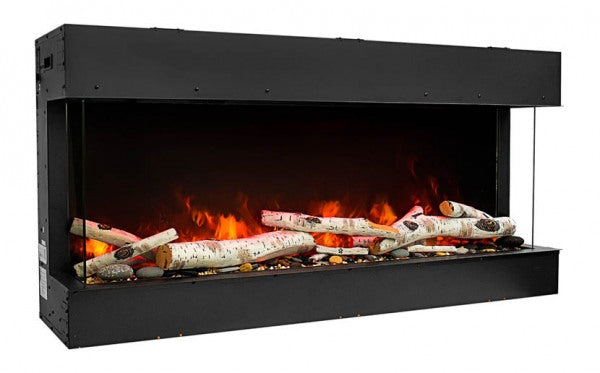

40″ wide and slim indoor or outdoor smart electric fireplace
Our Tru-View series family just got better with the addition of the Slim series! With an incredible depth of 3-7/8” and available in five sizes, you’ll find an electric fireplace that is perfect for any space in your home, business, or commercial space. At just 4” in-depth, the Slim is perfectly suited to installations in areas where wall depth is at a premium. The Tru-View-Slim series of electric fireplaces are designed to be installed into a 2 x 4″ wall.

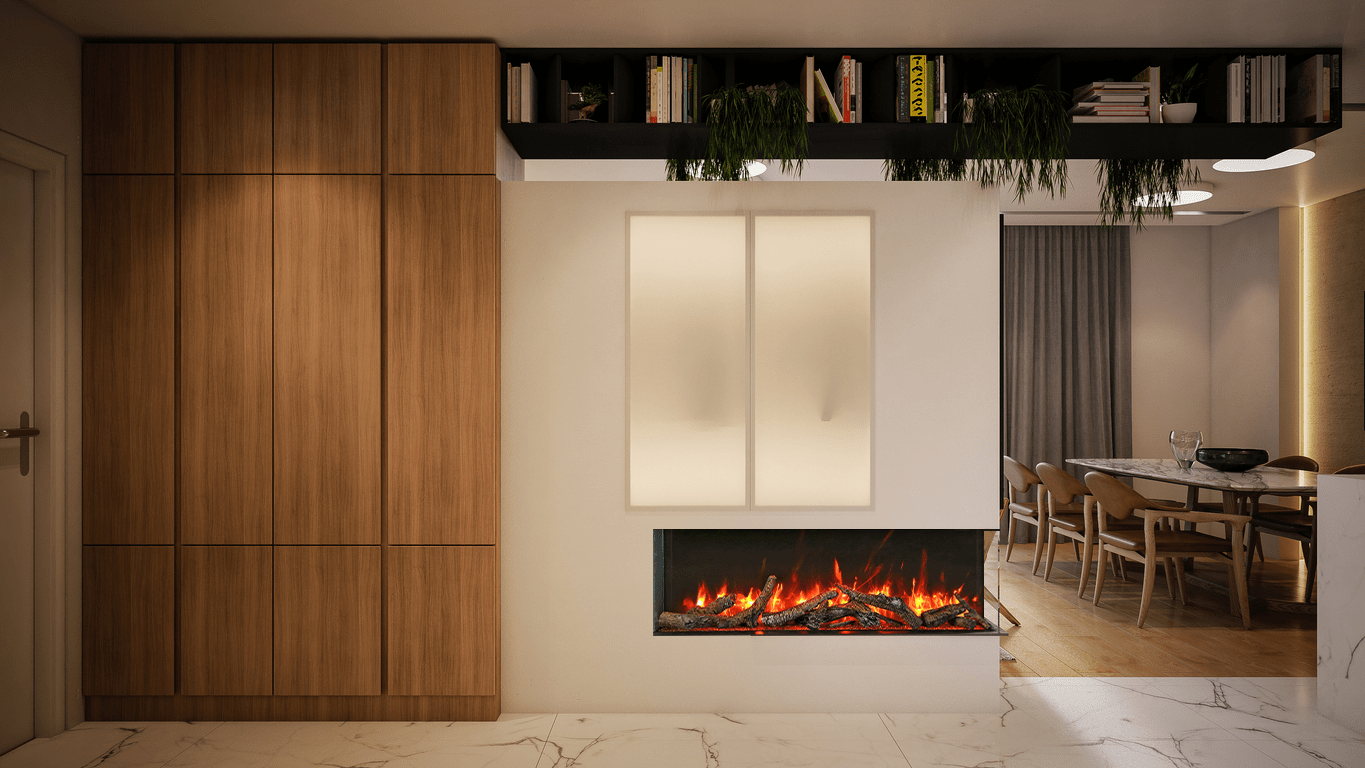

The TRV-SLIM fits beautifully as a corner fireplace!
The TRV-Slim model comes standard with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.
The Slim model comes standard with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.
Customize the appearance of the 40-TRU-VIEW-SLIM further by utilizing the included Designer Media Kit which includes a 10 Piece Birch Style Log Set, 2 colors of real fireglass and 2 colors of vermiculite.
Further media options available for additional purchase.
4 Installation Options:
- all 3 sides of glass visible
- Left side visible
- Right visible
- front only for an extra deep (14 1/4″) fireplace
Customize the appearance of the 40-TRU-VIEW-SLIM further by utilizing the included Designer Media Kit which includes a Deluxe 11 piece log set, pebbles, black glass and ICE media. Further media options available for additional purchase.
TRU-VIEW-SLIM electric fireplaces are rated for Indoor or Outdoor use. For outdoor applications please follow these instructions.
Features
-
- Can be INSTALLED into a 2 x 4 wall
- WiFi Compatible to connect and control the fireplace from your smartphone with the use of our app. Available on the Google Play Store and Apple App Store
- Very thin – only 4” in-depth
- All models are rated for either indoor or outdoor use
- Flame Presentation – State of the art flame presentation: Vibrant, multi-colored state of the art flame presentation – change from Yellow to Orange to Red with just a click of the remote.
- 2 Stage heater
- Hard-wire ready
- Thermostat hard-wire ready
- Can produce up to 5000 BTU of heat, enough to heat up to 500 sq feet
- Flame operates with or without heat
- Remote control for flame and heater
- 2 flame sets
- Ambient canopy lighting in 13 colors illuminates media like never before
| Flame Presentation | Ambient Canopy Lighting |
|---|---|
 Vibrant, multi-colored state-of-the-art flame presentation – change from Yellow to Orange to Red with just a click of the remote. Can all be done separately and mixed to make lots of combinations. |
Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless. |
Specs
| 40-TRU-VIEW-SLIM | |
| Volts | 120V |
| Amps | 12.5 |
| Watts | 1500 max |
| Heater | 1500 watts high 750 watts low |
| No Heater | 19 watts |
| Lamps | LED 41 watts |
| Rotor Motor | 2 at 5 watts |
| Height, Width, Depth | 26 5/8 x 43 1/4 x 10 5/8“ |
| Glass View Opening | 15 5/8” X 39 5/8’” |
| Glass Size | 15 5/8” X 39 5/8” |
| Shipping Size | 29 1/8” x 47 4/8” x 12 5/8” |
| Shipping Weight | 103.6 lbs – glass included 86.4 lbs – unit |
| Plug Location | Left Side |
| Cord Length | 76″ |
| Approx. Heating Area | 400 sq. ft. |
Installation
OUTDOOR INSTALLATION INSTRUCTIONS
TRU View XL Drill Modifications Diagram
REPLACEMENT GLASS MEASUREMENTS
INCLUDED ACCESSORIES
The 40-Tru-View-SLIM electric fireplace comes with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.
OPTIONAL ACCESSORIES
Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.
