72″ wide and slim indoor or outdoor electric fireplace
Our innovative Tru-View series family just got better with the addition of the Tru-View Slim series! With an incredible depth of 3-7/8 inches and available in five sizes, you’ll find an electric fireplace that is perfect for any space in your home, business or commercial space. At just under 4” in depth, the Slim is perfectly suited to installations in areas where wall depth is at a premium. The Tru-View-Slim series of electric fireplaces is designed to be installed into a 2 x 4″ wall.

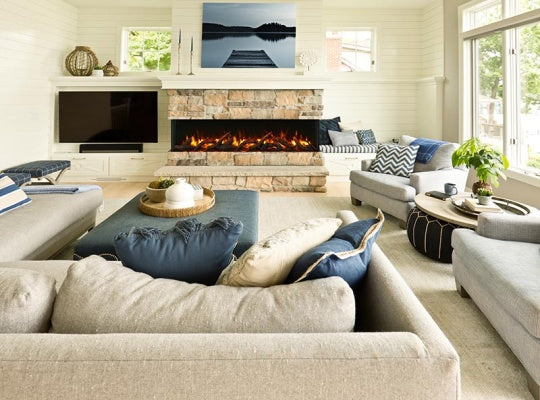

The stylish 72-TRU-VIEIW-SLIM electric fireplace fits beautifully as a corner fireplace!

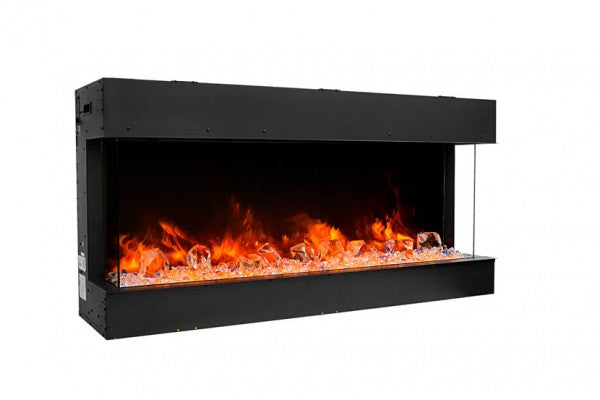

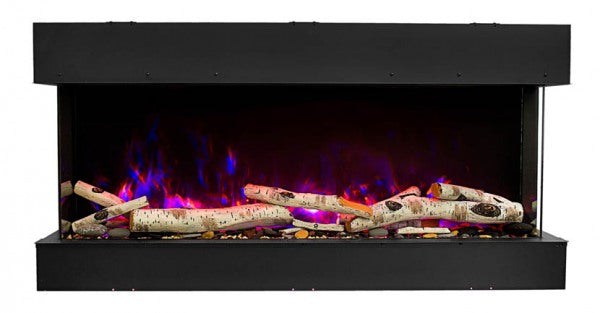

The 72-TRU-VIEIW-SLIM boasts the Amantii FIRE & ICE® Flame presentation with three color LED light strips allowing for multi-color flame options. With just a click of the included remote control, choose from blue, rose, violet, yellow or orange colored flames.

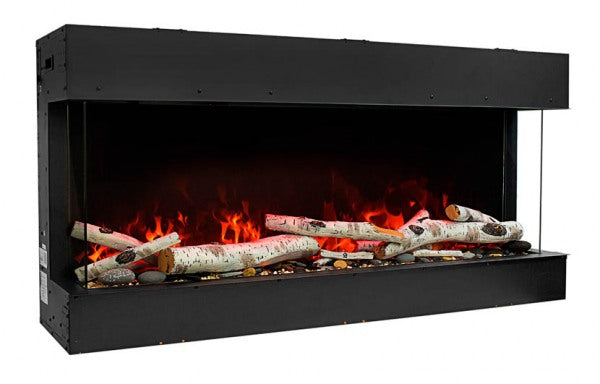

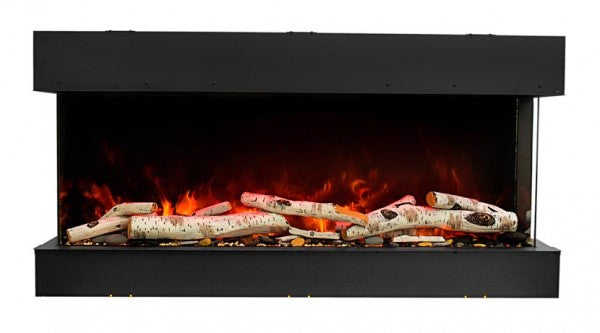

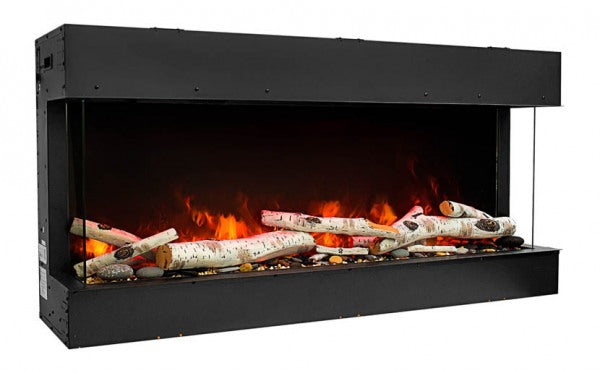

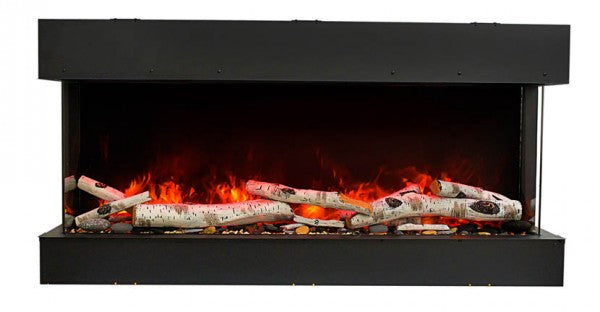

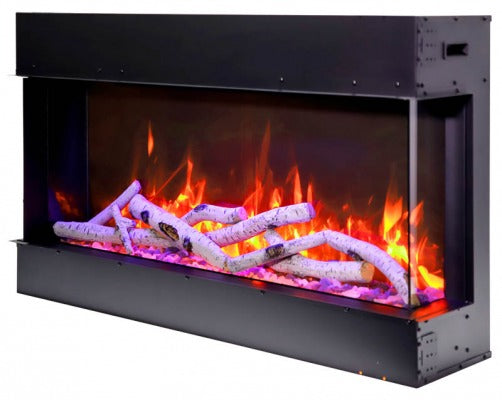

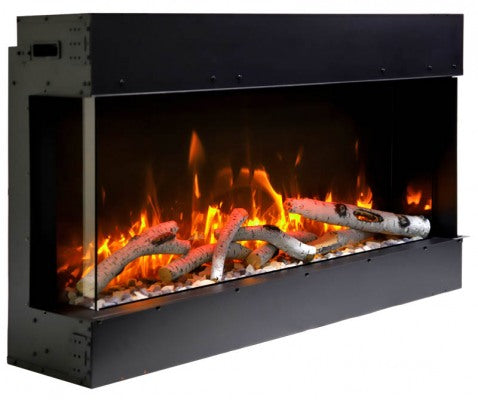

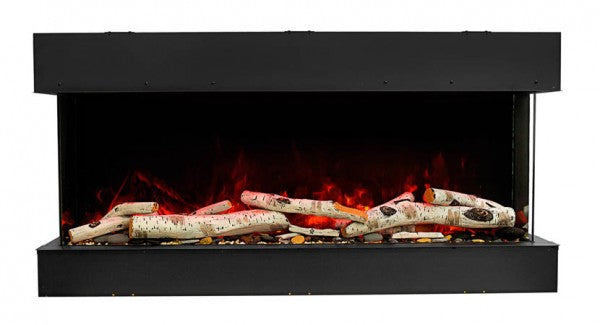

The Slim model comes standard with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.

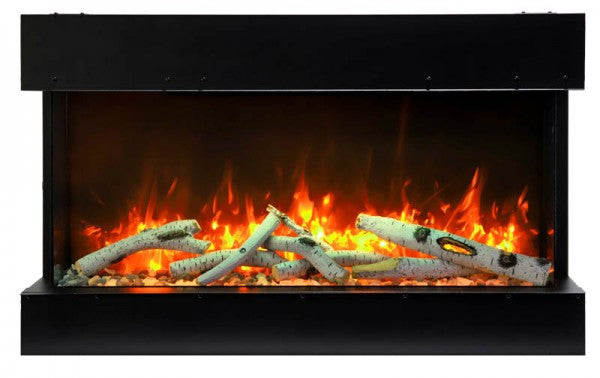

Customize the appearance of the 72-TRU-VIEW-SLIM further by utilizing the included Designer Media Kit which includes a 10 Piece Birch Style Log Set, 2 colors of real fireglass and 2 colors of vermiculite.
Further media options available for additional purchase.
4 Installation Options:
- all 3 sides of glass visible
- Left side visible
- Right visible
- front only for an extra deep (14 1/4″) fireplace

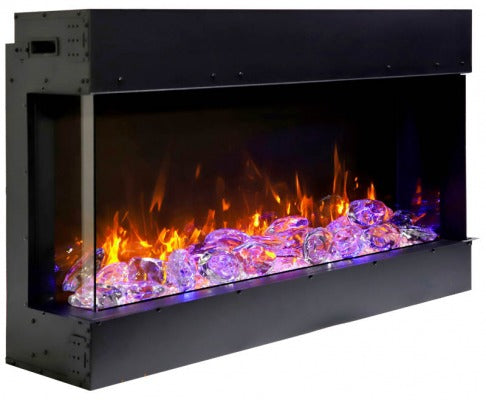

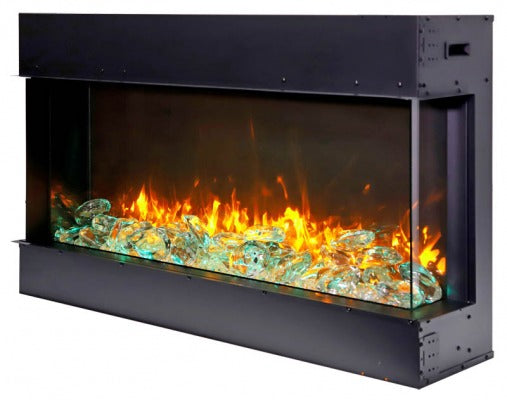

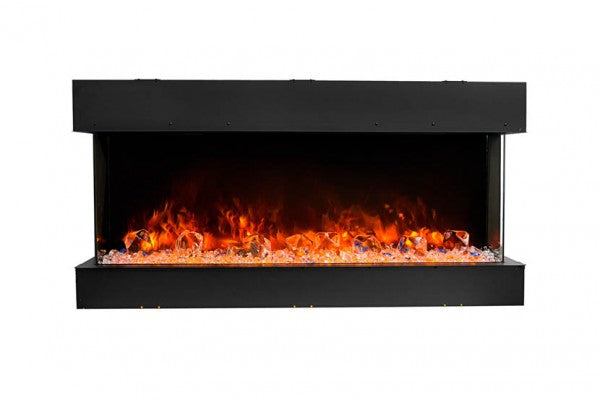

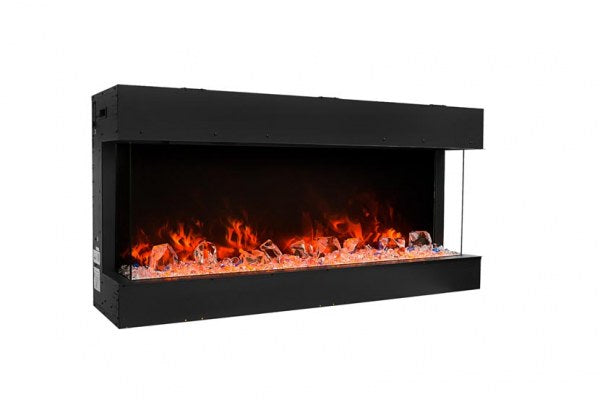

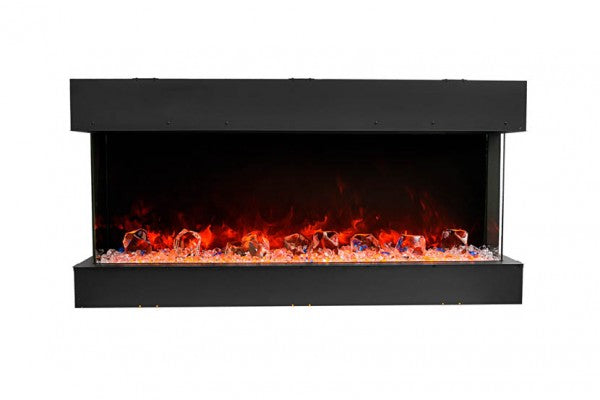

Customize the appearance of the 72-TRU-VIEW-SLIM further by utilizing the included Designer Media Kit which includes a Deluxe 11 piece log set, pebbles, black glass and ICE media. Further media options available for additional purchase.
TRU-VIEW-SLIM electric fireplaces are rated for Indoor or Outdoor use. For outdoor applications please follow these instructions.
Features
-
- Can be INSTALLED into a 2 x 4 wall
- WiFi Compatible to connect and control the fireplace from your smartphone with the use of our app. Available on the Google Play Store and Apple App Store
- Very thin – only 4” in-depth
- All models are rated for either indoor or outdoor use
- Flame Presentation – State of the art flame presentation: Vibrant, multi-colored state of the art flame presentation – change from Yellow to Orange to Red with just a click of the remote.
- 2 Stage heater
- Hard-wire ready
- Thermostat hard-wire ready
- Can produce up to 5000 BTU of heat, enough to heat up to 500 sq feet
- Flame operates with or without heat
- Remote control for flame and heater
- 2 flame sets
- Ambient canopy lighting in 13 colors illuminates media like never before
| Flame Presentation | Ambient Canopy Lighting |
|---|---|
 Vibrant, multi-colored state-of-the-art flame presentation – change from Yellow to Orange to Red with just a click of the remote. Can all be done separately and mixed to make lots of combinations. |
Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless. |
Specs
| 72-TRU-VIEW-SLIM | |
| Volts | 120V |
| Amps | 12.5 |
| Watts | 1500 max |
| Heater | 1500 watts high 750 watts low |
| No Heater | 19 watts |
| Lamps | LED 60 watts |
| Rotor Motor | 2 at 5 watts |
| Height, Width, Depth | 26 5/8 x 75 1/4 x 10 1/8“ |
| Glass View Opening | 15 5/8” X 71 5/8’” |
| Glass Size | 15 5/8” X 71 5/8” |
| Shipping Size | 29 1/8” x 79 4/8” x 12 5/8” |
| Shipping Weight | 167.1 lbs – glass included 139.1 lbs – unit |
| Plug Location | Left Side |
| Cord Length | 76″ |
| Approx. Heating Area | 400 sq. ft. |
Installation
OUTDOOR INSTALLATION INSTRUCTIONS
TRU View XL Drill Modifications Diagram
REPLACEMENT GLASS MEASUREMENTS
INCLUDED ACCESSORIES
The 72-Tru-View-SLIM electric fireplace comes with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.
OPTIONAL ACCESSORIES
Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.
