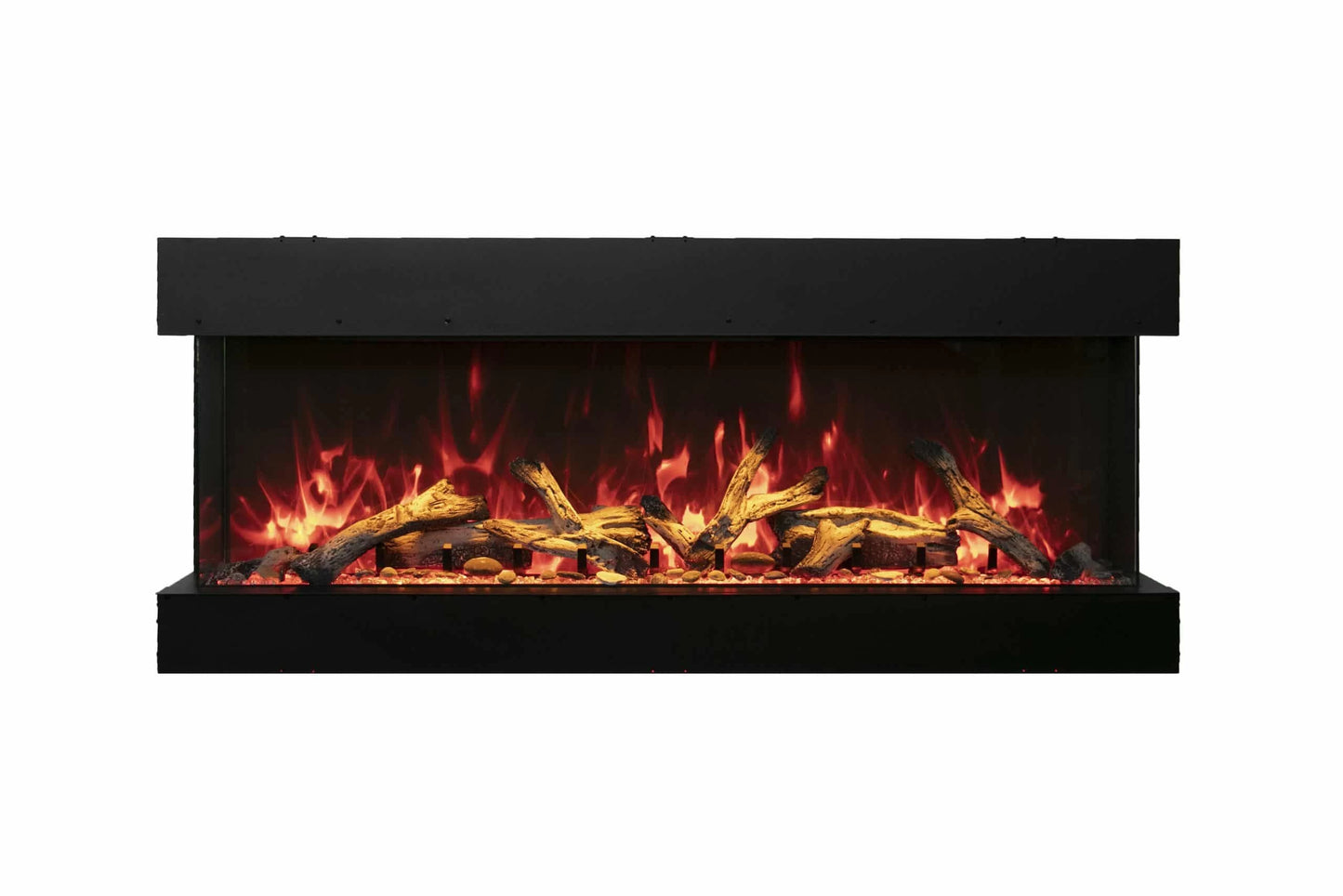

Amantii 72" 3 Sided Glass Smart Electric Fireplace Built-in Only 72-TRU-VIEW-XL-DEEP

Amantii 72" 3 Sided Glass Smart Electric Fireplace Built-in Only 72-TRU-VIEW-XL-DEEP

Regular price $3,099.00 USD
Regular price $3,873.75 USD Sale price $3,099.00 USD
Save
20%
Sold out
Shipping calculated at checkout.
View full details

TRU VIEW Extra Long Deep Smart – 3 Sided smart Glass Electric Fireplace

The stylish 72-TRU-VIEW-XL-DEEP 3 sided electric fireplace is truly innovative! The stunning flame presentation and unique media options can now be viewed from almost any angle through 3 sides of the glass viewing area.

Designed for finishing materials are to be built flush to the lip for a clean face finish. Built-In only. No trim or surround included.

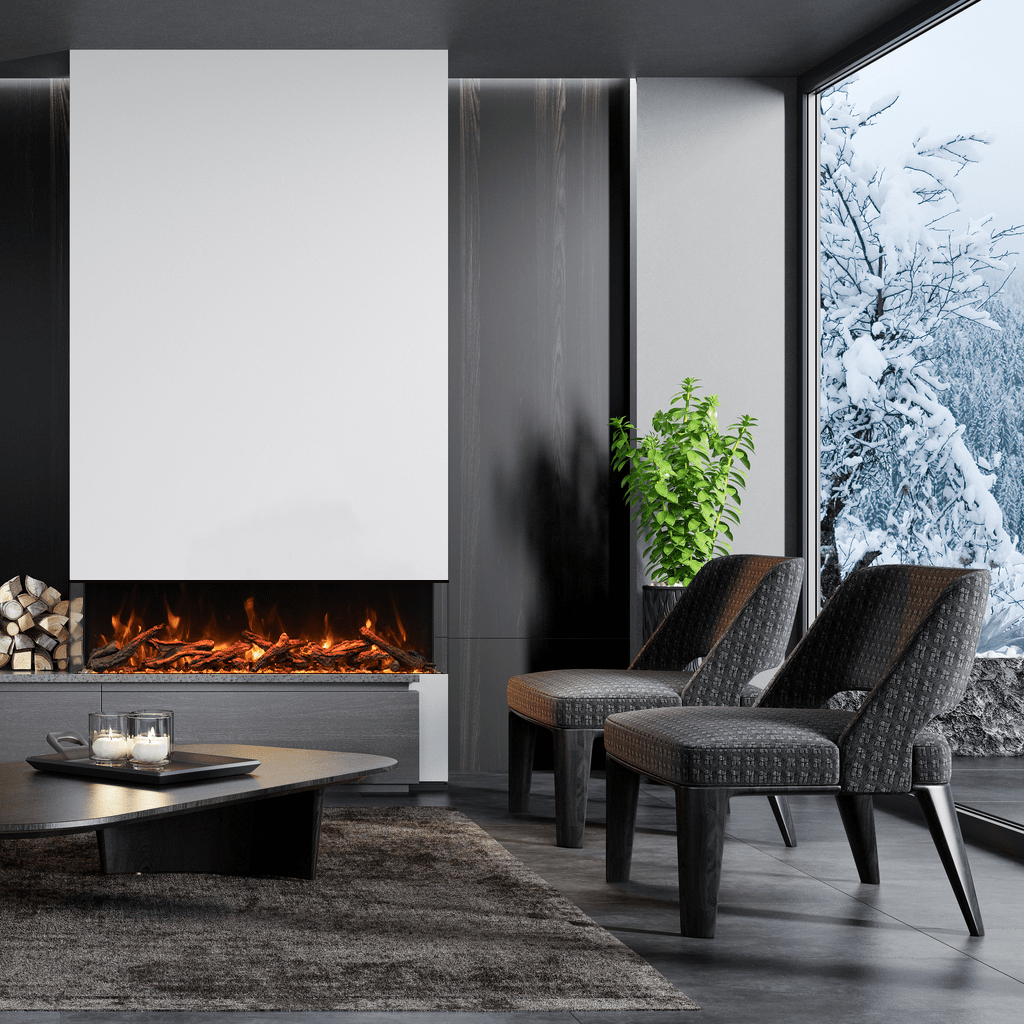

The Tru-ViewXL-DEEP series work beautifully as Corner Electric Fireplace. Perfect for any space, inside or out, including bathrooms.

Boasting a depth of 14 1/4”, the TRU-VIEW-XL-DEEP features two flame sets, and ambient canopy lighting in 13 colors to illuminate the decorative media like never before.





Customize the appearance of the 72-TRU-VIEW-XL-DEEP further by utilizing the included Designer Media Kit which includes a Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes. Further media options available for additional purchase.

4 Installation Options:

  • all 3 sides of glass visible
  • Left side visible
  • Right visible
  • front only for an extra deep (14 1/4″) fireplace

corner electric fireplace

Customize the appearance of the 72-TRU-VIEW-XL-DEEP further by utilizing the included Designer Media Kit which includes a Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes. Further media options available for additional purchase. TRU-VIEW-XL-DEEP fireplaces are rated for Indoor or Outdoor use. For outdoor applications please follow these instructions.

Features

      • Incredible 3 sided glass viewing area
      • WiFi is Compatible to connect and control the fireplace from your smartphone with the use of our app. Available on the Google Play Store and Apple App Store
      • All models are rated for either indoor or outdoor use
      • Flame Presentation  – State of the art flame presentation:  Vibrant, multi-colored state of the art flame presentation – change from Yellow to Orange to Red with just a click of the remote.
      • 2 Stage heater
      • Hard-wire ready
      • Thermostat hard-wire ready
      • Can produce up to 5000 BTU of heat, enough to heat up to 500 sq feet
      • Flame operates with or without heat
      • Remote control for flame and heater
      • 2 flame sets
      • Ambient canopy lighting in 13 colors illuminates media like never before

      Flame Presentation

      Vibrant, multi-colored state-of-the-art flame presentation – change from Yellow to Orange to Red with just a click of the remote. Can all be done separately and mixed to make lots of combinations.

      Ambient Canopy Lighting
      Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless.


Specs

72-TRU-VIEW-XL-DEEP
Volts 120
Amps 12.5
Watts 1500 max
Heater 1500 watts high
750 watts low
No Heater 25 watts
Lamps LED 22 watts
Rotor Motor 1 at 5 watts
Height, Width, Depth 26 5/8 x 75 1/4 x 14 1/4“
Glass View Opening 15 5/8 x 71 5/8”
Surround Size N/A
Shipping Size 31 7/8” x 86 5/8” x 16 1/8”
Shipping Weight 192.5 lbs. Glass Included
Plug Location Left Side
Cord Length 70 7/8”
Approx. Heating Area 400 sq. ft.



Installation

BROCHURE

SPECS

MANUAL

INSTALLATION INSTRUCTIONS

OUTDOOR INSTALLATION INSTRUCTIONS

TRU View XL Drill Modifications Diagram

REPLACEMENT GLASS MEASUREMENTS

FEATURE SHEET



INCLUDED ACCESSORIES

The 72-Tru-View-XL-DEEP electric fireplace comes with a choice of a Design Media kit – Driftwood, Birch or Rustic, or ICE media kit.


OPTIONAL ACCESSORIES

Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.
