TRU VIEW Extra Long Deep Smart – 3 Sided smart Glass Electric Fireplace

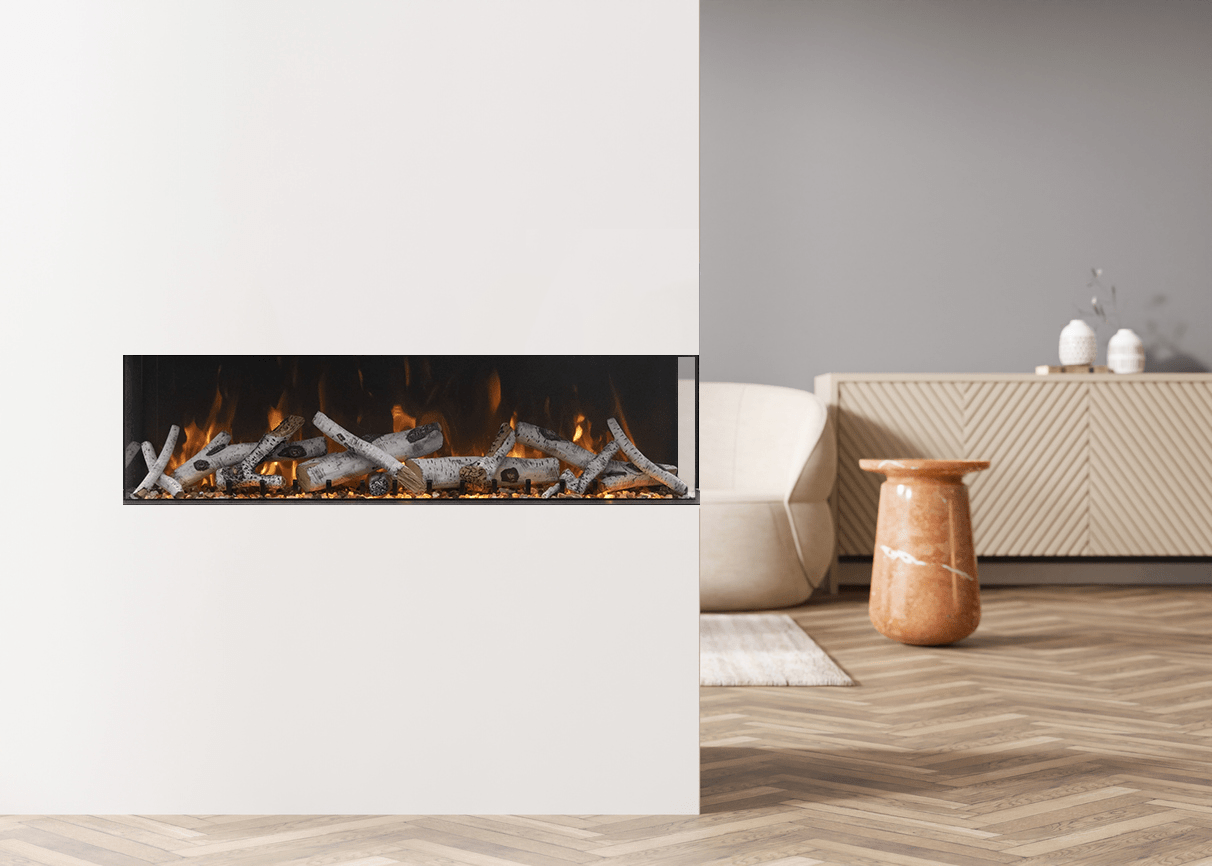

The stylish 40-TRU-VIEW-XL-DEEP 3 sided electric fireplace is truly innovative! The stunning flame presentation and unique media options can now be viewed from almost any angle through 3 sides of the glass viewing area.
Designed for finishing materials are to be built flush to the lip for a clean face finish. Built-In only. No trim or surround included.

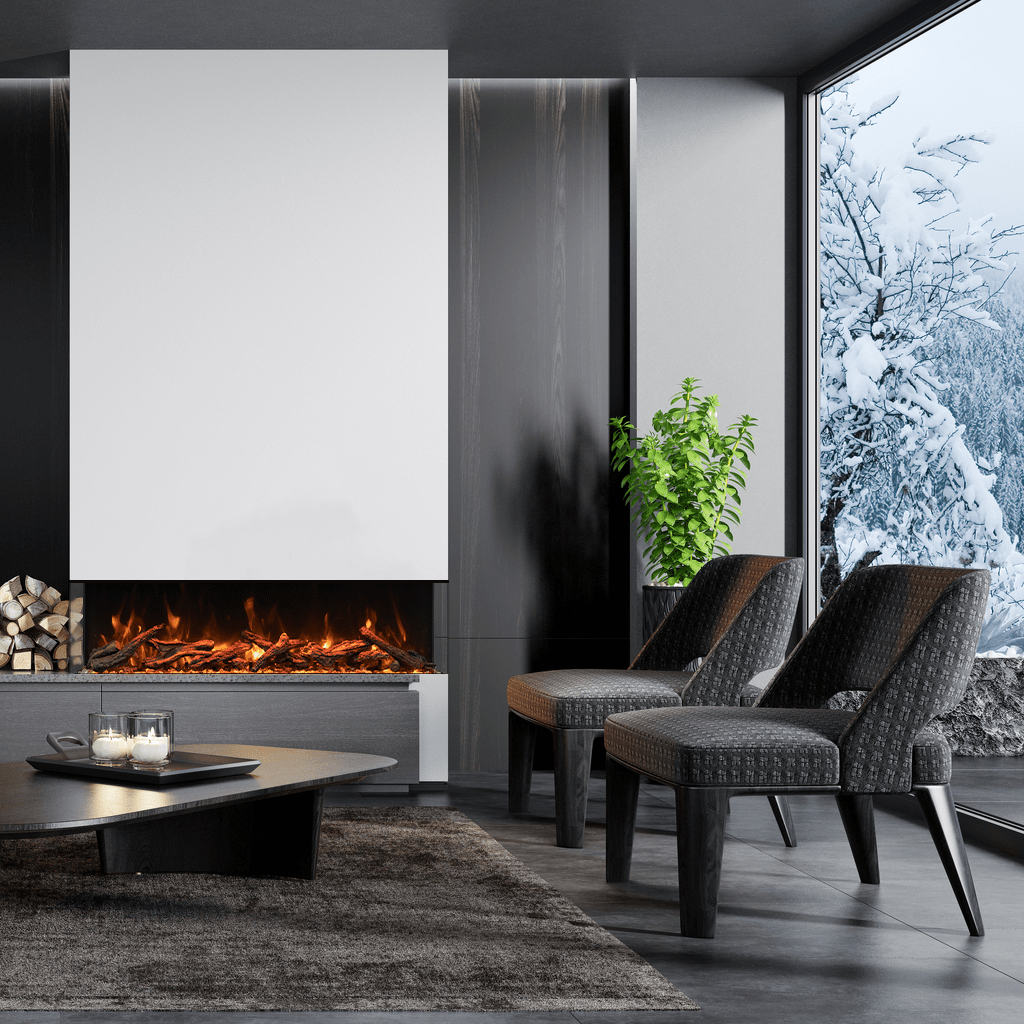

The Tru-ViewXL-DEEP series work beautifully as Corner Electric Fireplace. Perfect for any space, inside or out, including bathrooms.
Boasting a depth of 14 1/4”, the TRU-VIEW-XL-DEEP features two flame sets, and ambient canopy lighting in 13 colors to illuminate the decorative media like never before.
Customize the appearance of the 40-TRU-VIEW-XL-DEEP further by utilizing the included Designer Media Kit which includes a Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes. Further media options available for additional purchase.
4 Installation Options:
- all 3 sides of glass visible
- Left side visible
- Right visible
- front only for an extra deep (14 1/4″) fireplace
Customize the appearance of the 40-TRU-VIEW-XL-DEEP further by utilizing the included Designer Media Kit which includes a Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes. Further media options available for additional purchase.
TRU-VIEW-XL-DEEP fireplaces are rated for Indoor or Outdoor use. For outdoor applications please follow these instructions.
Features
-
- Incredible 3 sided glass viewing area
- WiFi is Compatible to connect and control the fireplace from your smartphone with the use of our app. Available on the Google Play Store and Apple App Store
- All models are rated for either indoor or outdoor use
- Flame Presentation – State of the art flame presentation: Vibrant, multi-colored state of the art flame presentation – change from Yellow to Orange to Red with just a click of the remote.
- 2 Stage heater
- Hard-wire ready
- Thermostat hard-wire ready
- Can produce up to 5000 BTU of heat, enough to heat up to 500 sq feet
- Flame operates with or without heat
- Remote control for flame and heater
- 2 flame sets
- Ambient canopy lighting in 13 colors illuminates media like never before
Flame PresentationVibrant, multi-colored state-of-the-art flame presentation – change from Yellow to Orange to Red with just a click of the remote. Can all be done separately and mixed to make lots of combinations.
Ambient Canopy LightingAmbient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless.
Specs
| 40-TRU-VIEW-XL-DEEP | |
| Volts | 120V AC 60Hz |
| Amps | 12.5 |
| Watts | 1500 max |
| Heater | 1500 watts high 750 watts low |
| No Heater | 22 watts |
| Motor Heater | 19 watts |
| Lamps | LED 22 watts |
| Rotor Motor | 1 at 5 watts |
| Height, Width, Depth | 26 5/8 x 43 1/4 x 14 1/4“ |
| Glass View Opening | 15 5/8 x 39 5/8” |
| Surround Size | N/A |
| Shipping Size | 31 7/8 x 51 x 16 1/8” |
| Shipping Weight | 121 lbs. Glass Included |
| Plug Location | Left Side |
| Cord Length | 70 7/8” |
| Approx. Heating Area | 400 sq. ft. |
Installation
OUTDOOR INSTALLATION INSTRUCTIONS
TRU View XL Drill Modifications Diagram
REPLACEMENT GLASS MEASUREMENTS
INCLUDED ACCESSORIES
The 40-Tru-View-XL-DEEP electric fireplace comes with a choice of a Design Media kit – Driftwood, Birch or Rustic, or ICE media kit.
OPTIONAL ACCESSORIES
Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.
